Jaswant

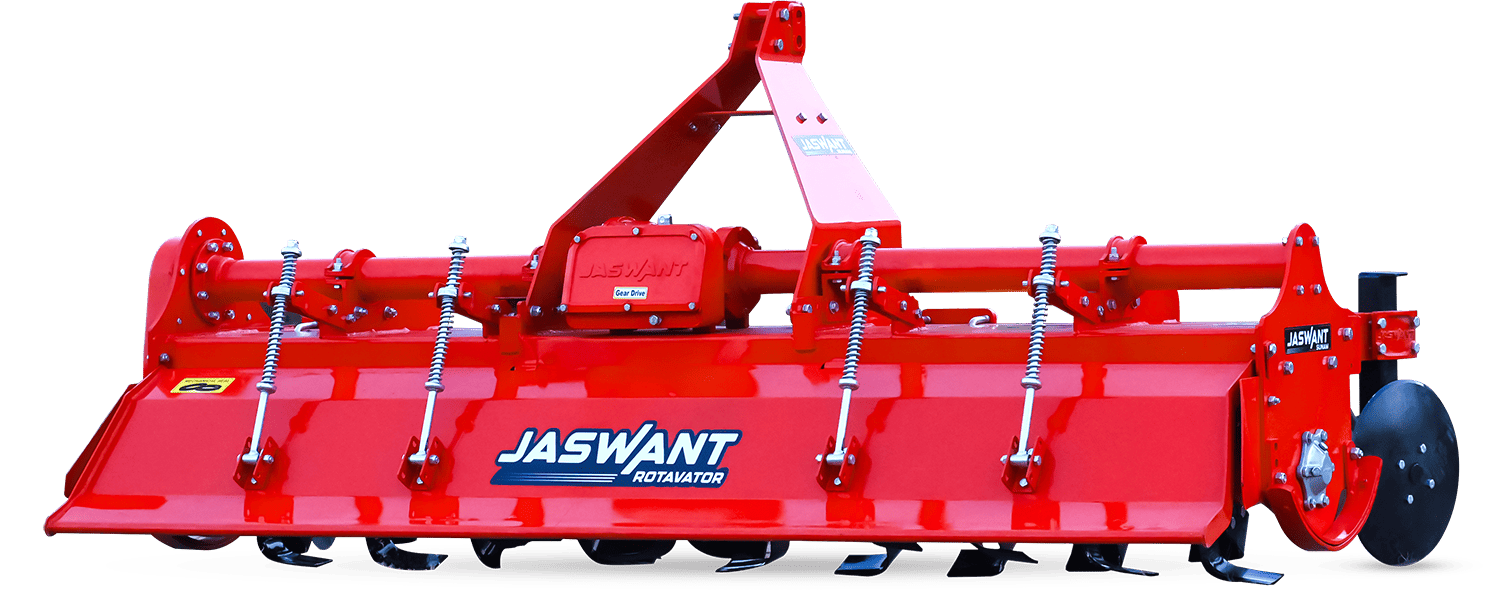

ROTAVATOR

It has a Semi automatic dual speed gear box, which provides option of 2 different rotor rpm for different soil conditions and applications.
We can easily change the rotor speed with the lever attached , without removing the back cover of the gear box.
Heavy duty side gear drive in oil bath which ensures high performance in all working conditions.
Heavy duty spring assembly in plank which ensures perfectly leveled and finished seedbed.
It can loosen & aerate soil up to 7 inches deep.

technical parameters of

DESCRIPTION	SIZE	SIZE	SIZE	SIZE	SIZE	SIZE	SIZE
Model	JRV 5	JRV 6	JRV 7	JRV 8	JRV 9	JRV 10	JRV 12
Working Width	1720	2022	2278	2634	3014	3242	5654
Type Of Blade	L/C Type	L/C Type	L/C Type	L/C Type	L/C Type	L/C Type	L/c Type
No. Of Blades	42	48	54	60	72	78	90
Material Of Blade	Boron	Boron	Boron	Boron	Boron	Boron	Boron
Diameter Of Rotor Pipe	90mm	90mm	90mm	90mm	90mm	90mm	90 mm
Hp Required	35-40	35-40	40-45	45-55	55-65	65-75	75-90
Gear Box	Multi Speed	Multi Speed	Multi Speed	Multi Speed	Multi Speed	Multi Speed	Multi Speed
Side Drive	Gear Drive	Gear Drive	Gear Drive	Gear Drive	Gear Drive	Gear Drive	Gear Drive
Weight	400kg	440kg	540kg	580kg	610kg	675kg	900kg

Rotavator
